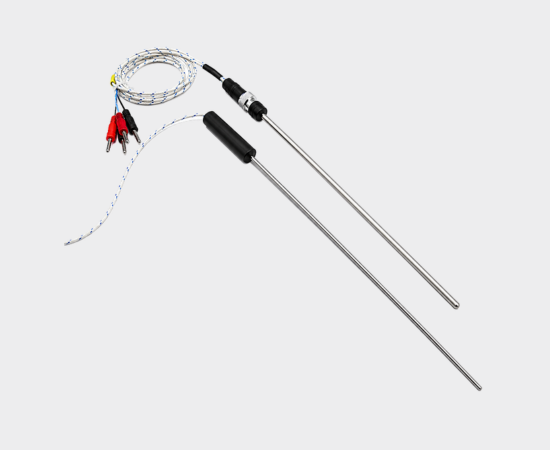

Standard RTD Sensor Semi Standard Platinum Resistance
Model: SSPRT
Temperature Range : -200 to 660°C / -80 to 600°C
stability :RO typical drift < 0.05°C after 100 hrs at 600°C
- Introduction
- Specifications
- Key Features
Product Details
SSPRT is Highly Accurate Platinum Resistance Thermometer (PT 100) offer the temperature range of -200 to 660°C. SSPRT gives the benefit of high accuracy and low drift in a solid metal case.
Wire wound resistance element give good stability with low temperature coefficient and high accuracy.
SSPRT is constructed with a 6 mm outer diameter of Inconel sheath of high durability. SSPRT is available in different accuracies and length. A special powder mixture is filled into the sensor capsule to support the element from mechanical shocks. This model is supplied with 5 point calibration or fixed point ITS-90 Chart with smaller uncertainty.
| Model | SSPRT |
|---|---|
| Type | PT 100 |
| Temperature Range |
(a) -200 to 660°C (b) -80 to 600°C |
| Temperature Co-efficient | 0.00385 Ω / Ω /°C |
| Stability | R0 typical drift < 0.05°C after 100 hrs at 600°C |
| Thermal Shock | R0 typical drift < 0.01°C after 100 times from 25 to 600°C |
| Vibration | withstand 10 to 2000Hz at 20 G's |
| Recommended Measuring Current | 1mA |
| Sheath Diameter | 6mm |
| Sheath Length | 450mm |
| Cable Length | 1500mm |
| Outer Sheath | SS-316 |
| End Connection | Flying Lead, 4 wire |
| Case Dimension (Approx.) | 80mm(H) × 750mm(W) × 80mm(D) |
| Gross Weight (Approx.) | 2.75kg (6 lbs) |
| Calibration Option | 5 point NABL (or) Fixed point ITS-90 Resistance Vs Temperature chart |
Note: It is better for continuous application to return its accuracy and long life.
Due to continuous product improvements, Published specifications may change without notice.
Temperature range from -200 to 660°C- 6mm O.D & 450mm Length
- Outer sheath SS 316 / Inconel
- High accuracy & Stability
- Manufactured & tested under strict quality control standards
- Cycled to stability
- Fast response
- Low Drift
- ISO / IEC 17025 Accredited calibration certificate.
