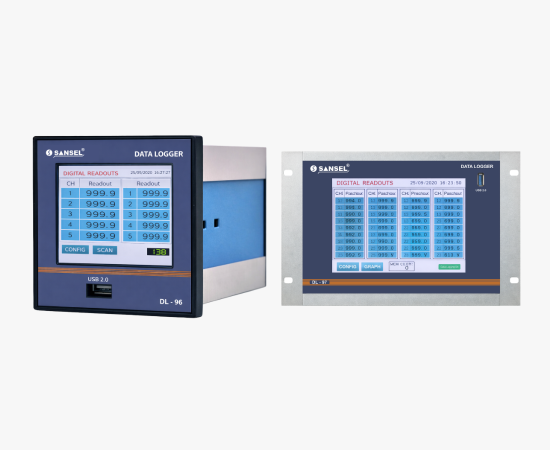

Touch Screen Universal Input Datalogger
MODEL : DL 96 & 97
Memory : 20000 Readings (per channel)
Operating Voltage : 100~240 VAC @ 50 / 60 Hz
Data Download : USB Pen Drive / PC / Dot Matrix Printer
- Introduction
- Specifications
- Key Features
- Accessories
Product Details
DL Series 8 / 16 / 32 / Channel universal touch screen Data Logger accept input RTD, Thermocouple, Voltage, Current. The logger suitable for temperature, Pressure, humidity, Level flow, RPM, voltage, Current, etc.,. The input is passed through suitable filters to eliminate unwanted signals. This is a high performance series equipped to handle virtually any process documentation in mechanical and system engineering. Cold junction compensation is standard feature in Thermocouple input.
DL series Universal Touch screen data logger provides memory approximately 25,000 records, communication port for PC interfacing and user friendly customized software package. The DL series Universal Touch screen data logger is multi colour TFT display, USB 2.0 for pen drive data transfer, compact size, priced very competitive. The unit can be drawn from the front for easy servicing . Product quality certified.
| Model | DL 96/97 | ||
|---|---|---|---|
| No.of channel | 8 or 16 or 32 channel | ||
| Sampling Rate | 100 msec (per channel) | ||
| Memory | 20000 Readings (per channel) | ||
| Data Download | USB Pen Drive / PC / Dot Matrix Printer | ||
| Operating Voltage | 100~240 VAC @ 50 / 60 Hz | ||
| Bezel Dimension | DL 96 | DL 97 | |
| 100 (H) × 110 (W) mm | 195 (H) × 295 (W) mm | ||
| Unit Dimension | 100 (H) × 110 (W) × 150 (D) mm | 195 (H) × 295 (W) × 80 (D) mm | |
| Display | 3.5 inch Multi-Color Active Matrix Touch Screen Display | 8 inch Multi-Color Active Matrix Touch Screen Display | |
| Weight (Approx.) | DL 96 | DL 97 | |
| 0.800 Kg | 1.5 Kg | ||
Note: Due to continuous product improvements, Published specifications may change with out notice
Multi-Color Active Matrix Touch Screen Display- Direct Universal Input Temperature / Voltage / Current
- Optional - Data through USB / RS485 / RS232 / Printer Port
- Optional - Ethernet / GSM Communication (5 Mobile Numbers, 3 Email IDs)
- Common Relay Output for Low & High Set Points
- Recording Rate 1 sec ~ 10 hours Selectable
- Data Logging ON / OFF & Data Erase Function
- User-friendly touch screen interface; DL-97 model supports live PV trend graph monitoring
Standard Delivery
- 1.Basic Instrument
- 2.Panel mount Clamp set
Optional
- 1. PC Interface Software
- 2. USB Converter (RS485/ RS232)
- 3. ISO/IEC 17025 Accredited calibration certificate
