The SANSEL TCAL 1404/300 Miniature Dry Block Temperature Calibrator is a compact and highly accurate calibration system designed for industrial temperature sensor calibration up to 300°C. This advanced calibrator combines portability, stability, and operational simplicity for efficient field and laboratory calibration.

Ideal for calibration of RTDs, thermocouples, transmitters, and industrial indicators, the TCAL 1404/300 ensures fast temperature stabilization and excellent measurement accuracy.

Its rugged construction and user-friendly operation make it suitable for process industries, pharmaceutical manufacturing, and calibration laboratories.

The SANSEL TCAL 1404/-15 Miniature Dry Block Temperature Calibrator is a compact low-temperature calibration solution engineered for accurate and reliable sensor calibration. Covering a temperature range from -15°C to 120°C, this advanced dry block calibrator offers excellent precision, fast stabilization, and operational efficiency.

Designed for calibration of thermocouples, RTDs, indicators, and transmitters, the TCAL 1404/-15 provides dependable performance in process industries, pharmaceutical facilities, testing laboratories, and field calibration applications.

Its portable design and advanced temperature control technology make it ideal for professionals requiring accurate temperature calibration in compact environments.

The SANSEL TCAL 1404/-5 Miniature Dry Block Temperature Calibrator is one of the most compact and feature-rich dry block calibrators available for industrial temperature calibration applications. Designed for portability and high precision, this calibrator offers a temperature range from -5°C to 100°C for accurate sensor calibration.

Built with advanced control technology and excellent operational stability, the TCAL 1404/-5 is ideal for calibration of thermocouples, RTDs, indicators, and transmitters in process industries, laboratories, and field service applications.

Its lightweight construction, fast stabilization, and user-friendly operation make it a preferred solution for onsite and laboratory temperature calibration requirements.

The SANSEL TCAL 1501 Series Dry Block Temperature Calibrator is a high-precision dry well calibration system designed for laboratory and onsite temperature calibration applications. Available in multiple temperature ranges from -35°C to 1200°C, the TCAL 1501 Series delivers superior resolution, stability, and fast heating and cooling performance.

The calibrator supports simultaneous calibration of multiple temperature sensors with improved uniformity due to its optimized well diameter and depth design. Integrated measurement functionality allows direct reading of thermocouples, RTDs, resistance, millivolt, and milliamp signals from industrial sensors, transmitters, and indicators.

Equipped with a 4.3-inch true colour TFT touch screen display, the system provides real-time monitoring of block temperature, set temperature, stability status, control output, and measurement parameters. Its advanced user interface and built-in help menu simplify operation for pharmaceutical, food processing, research, and calibration laboratory applications.

The SANSEL RPMC 1700 Series Tachometer Calibrator is a high-precision RPM generation and calibration system developed for accurate calibration of rotational speed measurement instruments. Designed using advanced motor control technology, high-speed precision motors, and high-resolution encoder systems, the RPMC 1700 delivers stable and traceable RPM reference generation.

Powered by a high-performance 32-bit CPU with automated gain tuning functionality, the calibrator ensures exceptional stability, smooth operation, and accurate speed control during calibration procedures. Its lightweight and rugged aluminium enclosure makes it ideal for both laboratory and onsite calibration environments.

The RPMC 1700 Series is suitable for calibration of contact and non-contact tachometers, RPM indicators, tacho generators, proximity sensors, stroboscopes, speedometers, and RPM transmitters used across industrial and automotive sectors.

The SANSEL DL Series Universal Touch Screen Multi Channel Data Logger is a high-performance industrial data acquisition system designed for accurate process monitoring and documentation. Available in 8, 16, and 32 channel configurations, the DL Series supports RTD, thermocouple, voltage, and current inputs for comprehensive industrial measurement applications.

The data logger is suitable for monitoring temperature, pressure, humidity, level, flow, RPM, voltage, and current parameters across various industrial sectors. Advanced signal filtering technology ensures elimination of unwanted noise and improved measurement accuracy, while cold junction compensation provides precise thermocouple measurement.

Featuring a multi-colour TFT touch screen display, USB 2.0 data transfer, internal memory storage for approximately 25,000 records, and PC communication interface software, the DL Series delivers reliable and user-friendly process documentation. The compact front-serviceable design makes maintenance convenient and efficient.

The SANSEL HCAL 1104U Precision Humidity and Temperature Generator is a high-performance calibration chamber designed for generating controlled humidity and temperature environments with exceptional accuracy and stability. Engineered with a large chamber volume, the HCAL 1104U enables fast and efficient calibration of multiple portable instruments, sensors, transmitters, and data loggers from different manufacturers simultaneously.

The system operates within a temperature range of 5°C to 60°C and humidity range of 3% RH to 95% RH, with psychometric dew point indication from -30°C to 45°C. Utilizing an advanced mixed flow humidity generation principle, the chamber employs a desiccant cell for dehumidification and an external humidifier for humidity generation and easy maintenance.

A solid-state Peltier element ensures efficient heating and cooling performance, while the improved metrology-grade design delivers superior stability and uniformity. The HCAL 1104U is ideal for calibration laboratories, pharmaceutical industries, sensor manufacturers, and research institutes requiring precise environmental calibration solutions.

The SANSEL BCAL 1202 Infrared Black Body Calibrator is a precision calibration instrument developed for non-contact infrared thermometer and online pyrometer calibration applications. The system generates stable target temperatures for accurate comparison-based calibration procedures.

The touch screen interface allows users to configure and monitor temperature values with ease while ensuring reliable calibration performance. This calibrator is widely used in energy sectors, glass industries, semiconductor industries, steel processing industries, and calibration laboratories.

Its stable reference temperature generation ensures precise and repeatable calibration results for industrial temperature measurement systems.

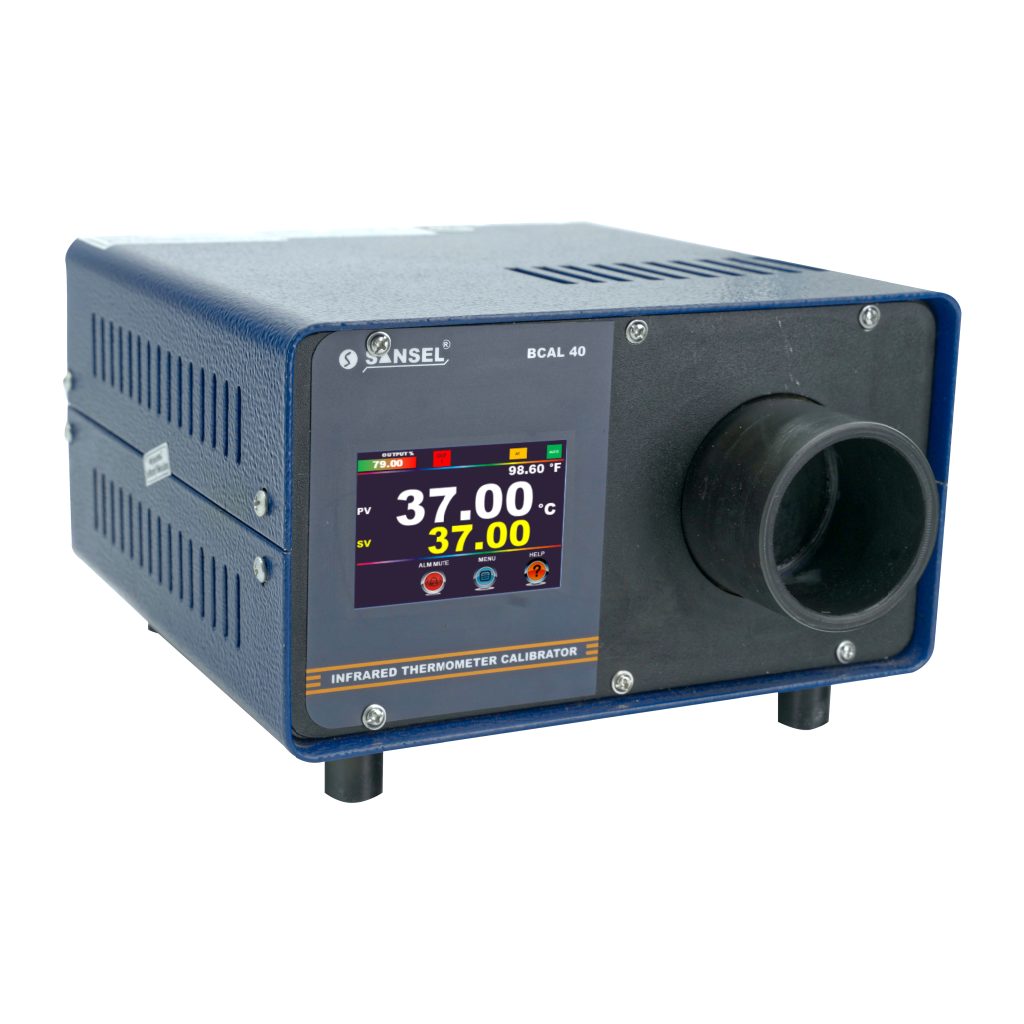

The SANSEL BCAL 40 Infrared Black Body Calibrator is specially designed for calibration and performance verification of non-contact medical thermometers, thermal imagers, and fever screening systems. This advanced black body source provides highly accurate temperature generation around human body temperature ranges.

Unlike conventional heat-only systems, the BCAL 40 uses solid-state heating and cooling technology, allowing stable operation across varying ambient conditions. The integrated 3.5-inch TFT touch screen provides simultaneous display of block temperature, set temperature, control status, output level, and operating parameters.

The BCAL 40 is widely used in hospitals, healthcare facilities, calibration laboratories, and thermal imaging system verification applications.

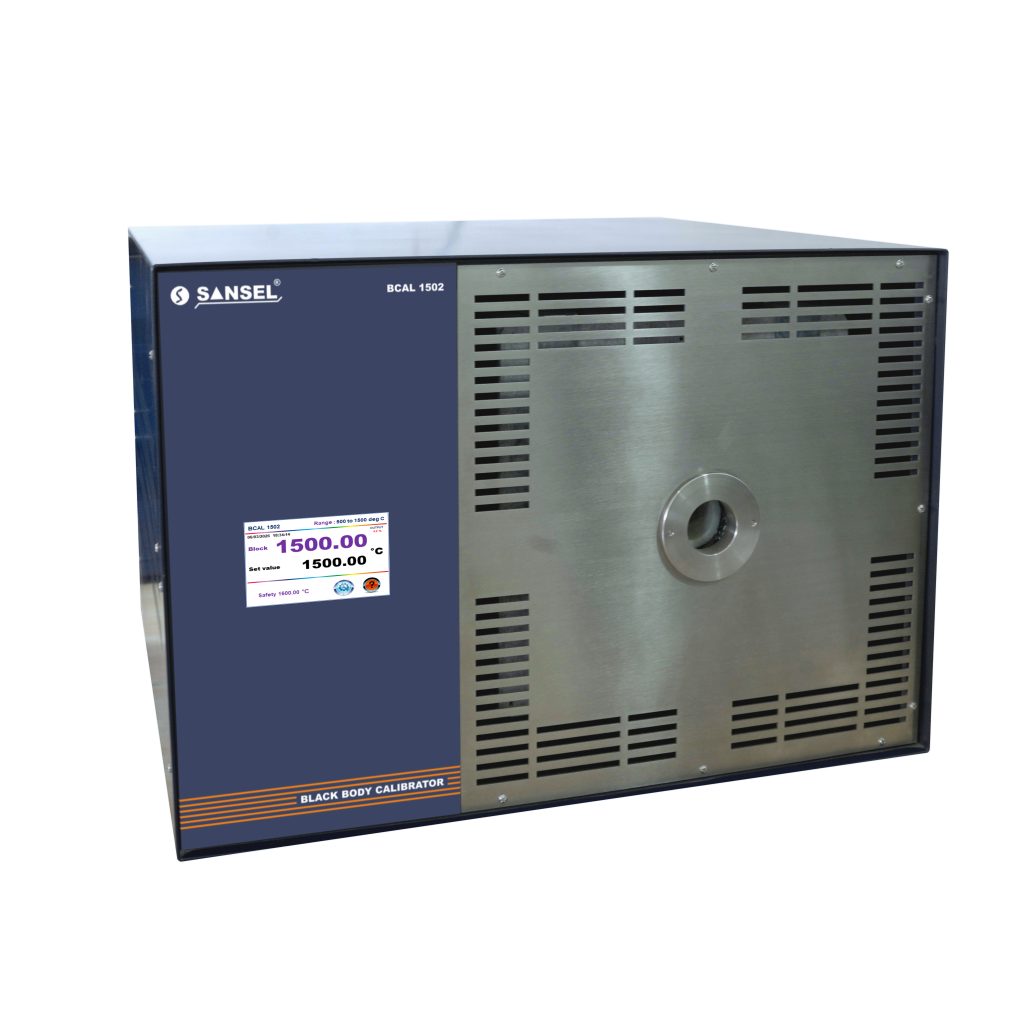

The SANSEL BCAL 1502 High Temperature Infrared Black Body Calibrator is a microcontroller-based precision calibration system engineered for infrared thermometer and pyrometer calibration applications. Utilizing advanced Auto Tune PID control technology, the system generates stable and highly accurate reference temperatures for industrial calibration requirements.

The calibrator allows users to compare the temperature measured by the Unit Under Calibration (UUC) against the stable target temperature generated by the calibrator or a standard pyrometer reference. The touch screen interface enables easy temperature setup and monitoring of true and set temperature values.

This advanced calibration system is ideal for calibration laboratories, steel industries, glass industries, ceramic manufacturing, and industrial temperature monitoring applications.
